Descrição



Documento sem título

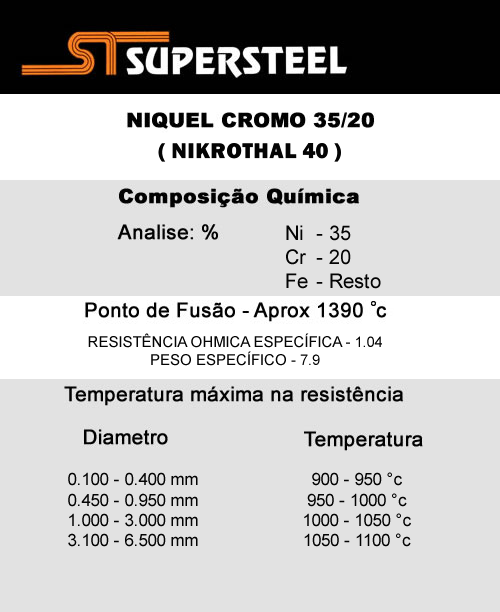

NIQUEL CROMO 35/20 (NIKROTHAL 40)

Use o fator Ct abaixo para obter resistência OHMICA de acordo com a temperatura.


ºc Ct
20 1.000
100 1.031
200 1.064
300 1.095
400 1.125
500 1.152
600 1.173
700 1.192
800 1.210
900 1.224
1000 1.235
1100 1.244

MM

OHMS/MT

20ºC

GR/MT



MT/KG


6.500 0.0313 262.1 3.8
6.453 0.0318 258.4 3.9
6.000 0.0367 223.4 4.4
5.827 0.0389 210.7 4.7
5.500 0.0437 187.7 5.3
5.189 0.0492 167.1 5.9
5.000 0.0529 155.1 6.4
4.750 0.0586 140.0 7.1
4.620 0.0620 132.4 7.5
4.500 0.0653 125.6 7.9
4.250 0.0733 112.1 8.9
4.115 0.0782 105.1 9.5
4.000 0.0827 99.3 10.1
3.750 0.0941 87.2 11.5
3.665 0.0986 83.3 11.9
3.500 0.1081 76.0 13.1
3.264 0.1243 66.1 15.1
3.250 0.1254 65.6 15.2
3.000 0.1471 55.8 17.9
2.906 0.1568 52.4 19.1
2.800 0.1689 48.6 20.6
2.600 0.1959 41.9 23.8
2.588 0.1977 41.6 24.1
2.500 0.2119 38.7 25.8
2.400 0.2299 35.7 27.9
2.304 0.2494 32.9 30.3
2.200 0.2736 30.0 33.3
2.100 0.3003 27.3 36.5
2.052 0.3145 26.1 38.3
2.000 0.3310 24.8 40.3
1.900 0.3668 22.4 44.6
1.829 0.3959 20.8 48.2
1.800 0.4087 20.1 49.7
1.700 0.4582 17.9 55.8
1.628 0.4997 16.4 60.8
1.600 0.5173 15.9 62.9
1.500 0.5885 13.9 71.6
1.450 0.6299 13.0 76.6
1.400 0.6756 12.1 82.2
1.300 0.7835 10.5 95.3
1.290 0.7963 10.3 96.8
1.250 0.8475 9.7 103.1
1.200 0.9196 8.9 111.9
1.151 0.9995 8.2 121.6
1.050 1.2010 6.8 146.2
1.024 1.2628 6.5 153.7
1.000 1.3240 6.2 161.2
0.950 1.4670 5.6 178.6
0.912 1.5920 5.2 193.8
0.900 1.6348 5.0 199.0
0.850 1.8328 4.5 223.1
0.813 2.0033 4.1 243.8
0.800 2.0690 4.0 251.8
0.750 2.3540 3.5 286.5
0.724 2.5260 3.3 307.5
0.700 2.7020 3.0 328.9
0.650 3.1340 2.6 381.5
0.644 3.1931 2.5 388.7
0.600 3.6780 2.2 477.7
0.574 4.0201 2.0 489.2
0.550 4.3770 1.9 532.8
0.511 5.0732 1.6 617.3
0.500 5.2970 1.5 644.7
0.455 6.4010 1.3 778.8
0.450 6.5390 1.3 795.9
0.404 8.1136 1.0 987.6
0.400 8.2760 0.99 1007
0.361 10.166 0.81 1238
0.350 10.810 0.76 1316
0.321 12.855 0.64 1565
0.300 14.710 0.56 1791
0.287 16.099 0.51 1957
0.254 20.553 0.40 2498
0.250 21.190 0.39 2579
0.226 25.935 0.32 3156
0.203 32.138 0.26 3912
0.200 33.100 0.25 4029
0.190 36.680 0.22 4465
0.180 40.870 0.20 5655
0.170 45.820 0.18 5577
0.160 51.730 0.16 6296
0.150 58.850 0.14 7163
0.142 65.823 0.13 7994
0.140 67.560 0.12 8223
0.130 78.350 0.10 9537
0.127 82.148 0.10 10000
0.120 91.960 0.089 11190
0.114 101.961 0.081 12407
0.110 109.400 0.075 13320
0.102 127.295 0.064 15504
0.100 132.400 0.062 16120
0.090 163.500 0.050 19900
0.089 167.203 0.049 20367
0.080 206.900 0.040 25180
0.079 212.245 0.039 25840
0.071 263.291 0.031 32051
0.064 323.988 0.025 39370
0.060 367.800 0.022 44770
0.056 422.764 0.019 51414
0.051 509.803 0.016 62112
0.050 529.700 0.015 64470
0.045 654.088 0.012 80.000
0.040 828.025 0.009 101.010
0.035 1081.081 0.008 131579
0.032 1293.532 0.006 158.730
0.029 1575.757 0.005 192.308
0.025 2122.449 0.004 263158
0.020 3312.102 0.002 403226

NIQUEL CROMO 35/20 (NIKROTHAL 40)

Use o fator Ct abaixo para obter resistência OHMICA de acordo com a temperatura.


ºc Ct
20 1.000
100 1.031
200 1.064
300 1.095
400 1.125
500 1.152
600 1.173
700 1.192
800 1.210
900 1.224
1000 1.235
1100 1.244


MM

OHMS/MT

20ºC

GR/MT



MT/KG


50 x 3.00 0.0069 1185 0.8
50 x 2.50 0.0083 987.5 1.0
50 x 2.00 0.0104 790.0 1.3
50 x 1.50 0.0138 592.5 1.7
50 x 1.20 0.0173 474.0 2.1
50 x 1.00 0.0208 395.0 2.5
40 x 3.00 0.0086 948.0 1.1
40 x 2.50 0.0104 790.0 1.3
40 x 2.00 0.0130 632.0 1.6
40 x 1.50 0.0173 474.0 2.1
40 x 1.20 0.0217 379.2 2.6
40 x 1.00 0.0260 316.0 3.1
35 x 3.00 0.0099 829.5 1.2
35 x 2.50 0.0119 691.2 1.4
35 x 2.00 0.0149 553.0 1.8
35 x 1.50 0.0198 414.7 2.4
35 x 1.20 0.0247 331.8 3.0
35 x 1.00 0.0297 276.5 2.6
30 x 3.00 0.0115 711.0 1.4
30 x 2.50 0.0139 592.5 1.7
30 x 2.00 0.0173 474.0 2.1
30 x 1.50 0.0231 284.4 3.5
30 x 1.20 0.0289 237.0 4.2
30 x 1.00 0.0347 237.0 4.2
25 x 2.50 0.0166 493.7 2.0
25 x 2.00 0.0208 395.0 2.5
25 x 1.50 0.0277 296.2 3.3
25 x 1.20 0.0347 237.0 4.2
25 x 1.00 0.0416 197.5 5.0
20 x 2.50 0.0208 395.0 2.5
20 x 2.00 0.0260 316.0 3.2
20 x 1.50 0.0346 237.0 4.2
20 x 1.20 0.0433 189.6 5.3
20 x 1.00 0.0520 158.0 6.3
15 x 2.00 0.0346 237.0 4.2
15 x 1.50 0.0462 177.7 5.6
15 x 1.20 0.0578 142.2 7.0
15 x 1.00 0.0693 118.5 8.4
12 x 2.00 0.0433 189.6 5.3
12 x 1.50 0.0577 142.2 7.0
12 x 1.20 0.0722 113.8 8.8
12 x 1.00 0.0866 94.8 10.5
10 x 2.00 0.0520 158.0 6.3
10 x 1.50 0.0693 118.5 8.4
10 x 1.20 0.0866 94.8 10.5
10 x 1.00 0.1040 79.0 12.6
9 x 1.50 0.0770 106.6 9.4
9 x 1.20 0.0963 85.3 11.7
9 x 1.00 0.1156 71.1 14.0
8 x 1.50 0.0866 94.8 10.5
8 x 1.20 0.1083 75.8 13.1
8 x 1.00 0.1300 63.2 15.8
7 x 1.50 0.0990 82.9 12.1
7 x 1.20 0.1238 66.3 15.0
7 x 1.00 0.1486 55.3 18.1
6 x 1.50 0.1155 71.1 14.1
6 x 1.20 0.1444 56.9 17.5
6 x 1.00 0.1733 47.4 21.1
5 x 1.50 0.1386 59.2 16.9
5 x 1.20 0.1733 47.4 21.1
5 x 1.00 0.2080 39.5 25.3
5 x 0.50 0.4160 19.7 50.6
5 x 0.40 0.5200 15.8 63.2
5 x 0.30 0.6933 11.8 84.3
5 x 0.20 1.0400 7.9 126.6
4.00 x 0.50 0.5652 14.5 68.8
4.00 x 0.40 0.7065 11.6 86.0
4.00 x 0.30 0.9420 8.8 114.4
4.00 x 0.20 1.4130 6.3 158.7
3.00 x 0.50 0.7536 10.9 91.7
3.00 x 0.40 0.9420 8.7 114.7
3.00 x 0.30 1.2560 6.5 152.9
3.00 x 0.20 1.8840 4.4 229.3
3.00 x 0.10 3.7681 2.4 421.9
2.50 x 0.25 1.8087 4.9 202.5
2.50 x 0.20 2.2610 3.9 253.2
2.50 x 0.15 3.0140 2.9 337.6
2.50 x 0.125 3.6174 2.5 405.2
2.50 x 0.100 4.5217 1.8 550.4
2.00 x 0.25 2.2609 3.6 275.2
2.00 X 0.20 2.8260 2.9 344.0
2.00 x 0.15 3.7680 2.2 458.6
2.00 x 0.125 4.5220 1.8 550.4
2.00 x 0.100 5.6520 1.4 687.9
1.50 x 0.25 3.0144 2.9 337.6
1.50 x 0.20 3.7680 2.1 458.6
1.50 x 0.15 5.0240 1.6 611.5
1.50 x 0.125 6.0290 1.3 733.8
1.50 x 0.100 7.5360 1.1 917.3
1.00 x 0.200 5.6520 1.4 687.9
1.00 x 0.15 7.5360 1.1 917.3
1.00 x 0.125 9.0430 0.91 1101
1.00 x 0.10 11.3000 0.73 1376
