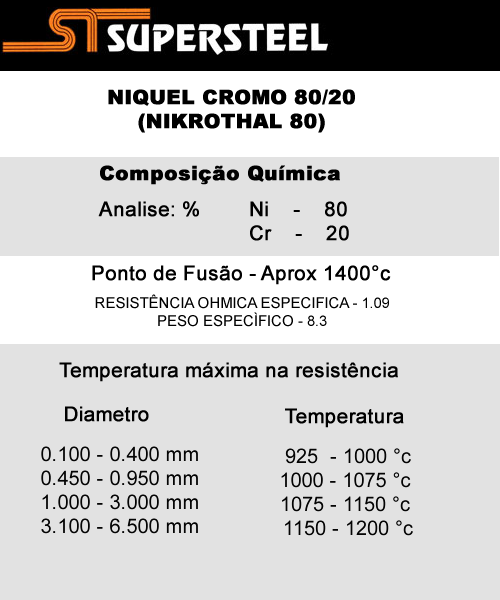

NIQUEL CROMO 80/20 (NIKROTHAL 80)

Use o fator Ct abaixo para obter resistência OHMICA de acordo com a temperatura.


ºc Ct
20 1.000
100 1.009
200 1.018
300 1.028
400 1.037
500 1.047
600 1.042
700 1.036
800 1.037
900 1.042
1000 1.049
1100 1.059
1200 1.069

MM

OHMS/MT

20ºC

GR/MT



MT/KG


6.500 0.0328 275.4 3.6
6.453 0.0333 271.5 3.7
6.000 0.0385 234.7 4.3
5.827 0.0408 221.3 4.5
5.500 0.0459 197.2 5.1
5.189 0.0515 175.5 5.7
5.000 0.0555 163.0 6.1
4.750 0.0615 147.1 6.8
4.620 0.0650 139.1 7.2
4.500 0.0685 132.0 7.6
4.250 0.0768 117.7 8.5
4.115 0.0820 110.4 9.1
4.000 0.0867 104.3 9.6
3.750 0.0987 91.7 10.9
3.665 0.1033 87.6 11.4
3.500 0.1133 79.9 12.5
3.264 0.1303 69.4 14.4
3.250 0.1314 68.9 14.5
3.000 0.1542 58.7 17.0
2.906 0.1643 55.0 18.2
2.800 0.1770 51.1 19.6
2.600 0.2053 44.1 22.7
2.588 0.2072 43.7 22.9
2.500 0.2220 40.7 24.6
2.400 0.2409 37.5 26.7
2.304 0.2614 34.6 28.9
2.200 0.2867 31.6 31.7
2.100 0.3147 28.7 34.8
2.052 0.3296 27.4 36.4
2.000 0.3469 26.1 38.3
1.900 0.3844 23.5 42.5
1.829 0.4149 21.8 45.9
1.800 0.4283 21.1 47.3
1.700 0.4802 18.8 53.1
1.628 0.5236 17.3 57.9
1.600 0.5421 16.7 59.9
1.500 0.6168 14.7 68.2
1.450 0.6601 13.7 72.9
1.400 0.7081 12.8 78.2
1.300 0.8212 11.1 90.8
1.290 0.8340 10.8 92.2
1.250 0.8882 10.2 98.2
1.200 0.9638 9.4 106.6
1.151 1.0476 8.6 115.8
1.050 1.2588 7.2 139.1
1.024 1.3235 6.8 146.3
1.000 1.3878 6.5 153.4
0.950 1.5378 5.8 169.9
0.912 1.6686 5.4 184.4
0.900 1.7134 5.3 189.4
0.850 1.9209 4.7 212.3
0.813 2.0997 4.3 232.1
0.800 2.1685 4.2 239.7
0.750 2.4672 3.7 272.7
0.724 2.6476 3.4 292.6
0.700 2.8323 3.2 313.1
0.650 3.2848 2.7 363.1
0.644 3.3463 2.7 369.9
0.600 3.8551 2.3 426.1
0.574 4.2122 2.1 465.6
0.550 4.5879 2.0 507.1
0.511 5.3149 1.7 587.5
0.500 5.5513 1.6 613.6
0.455 6.7037 1.4 741.0
0.450 6.8535 1.3 757.5
0.404 8.5030 1.1 939.9
0.400 8.6739 1.0 958.7
0.361 10.6493 0.85 1117
0.350 11.3292 0.80 1252
0.321 13.4687 0.67 1489
0.300 15.4203 0.58 1704
0.287 16.8489 0.54 1862
0.254 21.5114 0.42 2378
0.250 22.2052 0.41 2454
0.226 27.1718 0.33 3003
0.203 33.6779 0.27 3723
0.200 34.6957 0.26 3835
0.190 38.4440 0.23 4249
0.180 42.8342 0.21 4734
0.170 48.0217 0.19 5308
0.160 54.2120 0.17 5992
0.150 61.6812 0.15 6818
0.142 68.8270 0.13 7608
0.140 70.8075 0.12 7826
0.130 82.1200 0.11 9077
0.127 86.0455 0.10 9510
0.120 96.3769 0.094 10653
0.114 106.7888 0.085 11804
0.110 114.6965 0.079 12678
0.102 133.3937 0.068 14744
0.100 138.7828 0.065 15340
0.090 171.3368 0.053 18938
0.089 175.2087 0.052 19366
0.080 216.8481 0.041 23969
0.079 222.3727 0.041 24580
0.071 275.3080 0.033 30431
0.064 338.8252 0.027 37452
0.060 385.5077 0.023 42612
0.056 442.5471 0.020 48916
0.051 533.5747 0.017 58979
0.050 555.1311 0.016 61361
0.045 685.3471 0.013 75754
0.040 867.3924 0.010 95876
0.035 1132.9207 0.008 125226
0.032 1355.3006 0.007 149806
0.029 1650.2115 0.005 182404
0.025 2220.5246 0.004 245443
0.020 3469.5696 0.003 383505

NIQUEL CROMO 80/20 (NIKROTHAL 80)

Use o fator Ct abaixo para obter resistência OHMICA de acordo com a temperatura.
ºc Ct
20 1.000
100 1.009
200 1.018
300 1.028
400 1.037
500 1.047
600 1.042
700 1.036
800 1.037
900 1.042
1000 1.049
1100 1.059
1200 1.069

MM

OHMS/MT

20ºC

GR/MT



MT/KG


50 x 3.00 0.0073 1245 0.8
50 x 2.50 0.0087 1037 1.0
50 x 2.00 0.0109 830.0 1.2
50 x 1.50 0.0145 622.5 1.6
50 x 1.20 0.0182 498.0 2.0
50 x 1.00 0.0218 415.0 2.1
40 x 3.00 0.0091 996.0 1.0
40 x 2.50 0.0109 830.0 1.2
40 x 2.00 0.0136 664.0 1.5
40 x 1.50 0.0182 498.0 2.0
40 x 1.20 0.0227 398.4 2.5
40 x 1.00 0.0272 332.0 3.0
35 x 3.00 0.0104 871.5 1.1
35 x 2.50 0.0125 726.2 1.4
35 x 2.00 0.0156 581.0 1.7
35 x 1.50 0.0208 435.8 2.3
35 x 1.20 0.0259 348.6 2.9
35 x 1.00 0.0311 290.5 3.4
30 x 3.00 0.0121 747.0 1.3
30 x 2.50 0.0145 622.5 1.6
30 x 2.00 0.0182 498.0 2.0
30 x 1.50 0.0242 373.5 2.7
30 x 1.20 0.0303 298.8 3.3
30 x 1.00 0.0363 249.0 4.0
25 x 2.50 0.0174 518.7 1.9
25 x 2.00 0.0218 415.0 2.4
25 x 1.50 0.0291 311.2 3.2
25 x 1.20 0.0363 249.0 4.0
25 x 1.00 0.0436 207.5 4.8
20 x 2.50 0.0218 415.0 2.4
20 x 2.00 0.0272 332.0 3.0
20 x 1.50 0.0363 249.0 4.0
20 x 1.20 0.0454 199.2 5.0
20 x 1.00 0.0545 166.0 6.0
15 x 2.00 0.0363 249.0 4.0
15 x 1.50 0.0484 186.7 5.3
15 x 1.20 0.0605 149.4 6.7
15 x 1.00 0.0727 124.5 8.0
12 x 2.00 0.0454 199.2 5.0
12 x 1.50 0.0660 149.4 6.7
12 x 1.20 0.0757 119.5 8.4
12 x 1.00 0.0908 99.6 10.0
10 x 2.00 0.0545 166.0 6.0
10 x 1.50 0.0727 124.5 8.0
10 x 1.20 0.0908 99.6 10.0
10 x 1.00 0.1090 83.0 12.0
9 x 1.50 0.0807 112.0 8.9
9 x 1.20 0.1009 89.6 11.2
9 x 1.00 0.1211 74.7 13.3
8 x 1.50 0.0908 99.6 10.0
8 x 1.20 0.1135 79.7 12.6
8 x 1.00 0.1362 66.4 15.1
7 x 1.50 0.1038 87.1 11.5
7 x 1.20 0.1298 69.7 14.3
7 x 1.00 0.1557 58.1 17.2
6 x 1.50 0.1211 74.7 13.3
6 x 1.20 0.1514 59.8 16.7
6 x 1.00 0.1817 49.8 20.1
5 x 1.50 0.1453 62.2 16.1
5 x 1.20 0.1817 49.8 20.1
5 x 1.00 0.2180 41.5 24.1
5 x 0.50 0.4360 20.7 48.2
5 x 0.40 0.5450 16.6 60.2
5 x 0.30 0.7267 12.4 80.3
5 x 0.20 1.0912 8.3 120.5
4.00 x 0.50 0.5924 15.3 65.4
4.00 x 0.40 0.7405 12.2 81.8
4.00 x 0.30 0.9873 9.2 109.1
4.00 x 0.20 1.4809 6.6 150.6
3.00 x 0.50 0.7899 11.5 87.31
3.00 x 0.40 0.9873 9.2 109.1
3.00 x 0.30 1.3160 6.9 145.5
3.00 x 0.20 1.9750 4.6 218.3
3.00 x 0.10 3.9493 2.5 401.6
2.50 x 0.25 1.8956 5.2 192.8
2.50 x 0.20 2.3700 3.8 261.9
2.50 x 0.15 3.1590 2.9 349.2
2.50 x 0.125 3.7913 2.6 385.5
2.50 x 0.100 4.7391 2.1 481.9
2.00 x 0.25 2.3696 4.1 240.1
2.00 X 0.20 2.9620 3.1 327.4
2.00 x 0.15 3.9490 2.3 436.5
2.00 x 0.125 4.7390 1.9 523.8
2.00 x 0.100 5.9240 1.5 654.8
1.50 x 0.25 3.1594 3.1 321.3
1.50 x 0.20 3.9490 2.3 436.5
1.50 x 0.15 5.2660 1.7 582.0
1.50 x 0.125 6.3190 1.4 698.4
1.50 x 0.100 7.8990 1.1 873.1
1.00 x 0.200 5.9240 1.5 654.8
1.00 x 0.15 7.8990 1.1 873.1
1.00 x 0.125 9.4780 0.95 1048
1.00 x 0.10 11.8500 0.76 1310
